¡ôSpecail design:
Used under high temperature envoirnment. Especially in casting industry.
¡ôMulti-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
¡ôMulti-function operation:
Tare£»Zero£»Auto zero tracking£»Total£»Hold; Overload warning and record, Calibration through remote controller ,etc functions.
¡ôUser-friendly design:
Cast alloy steel housing for maximum protection; Large red 5 digit LED display (digit height 58mm); Gravity compensation; Battery Operated with low battery indication; Automatic turn off , power-saving function.
Min distance between scale and high temperature
| 1000¡æ |
1200¡æ |
1400¡æ |
1600¡æ |
| 1.6m |
1.8m |
2m |
2.2m |

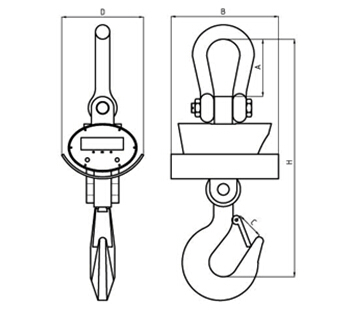

| MODEL |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
H(mm) |
N.W.(kg) |
| OCS-SZH-20 |
260 |
350 |
105 |
370 |
1055 |
122 |
| OCS-SZH-30 |
295 |
470 |
125 |
460 |
1140 |
198 |
| OCS-SZH-50 |
360 |
670 |
180 |
570 |
1680 |
550 |
¡¡
| MODEL |
Max. capacity(kg) |
Min. weigh(kg) |
Division(kg) |
Total dispay counts (n) |
| OCS-SZH-20 |
20000 |
200 |
10 |
2000 |
| OCS-SZH-30 |
30000 |
200 |
10 |
3000 |
| OCS-SZH-50 |
50000 |
400 |
20 |
2500 |
